Generator from Motor (With Simple CD’s Turbine) . ( CD Disc Generator) from Trash

Generator from Motor (With Simple CD’s Turbine) . ( CD Disc Generator) from Trash.

Note: Video (Step by Step procedure) is Coming Soon….

Requirements

  • 2 old CD Disks
  • 12V Motor as a Generator (Tape recorder or toy car motor)
  • Straw
  • Rubber sheet
  • Flexible Wire
  • Metal clip
  • Insulated Copper Wire
  • 2 Nuts and bolts
  • LED x 1pc
  • Wooden Stand
  • Washers
  • Small Pulley
  • Big Rubber Band
  • Bobbin

Procedure

  • Sandwich a smaller diameter rubber between two old CD disks to make a big pulley.
  • place a long screw In the lower hole of the Wooden Stand.
  • Then put a machine bobbin, washer, CD pulley, washer and a nut. Fix a long screw handle to the CD pulley.
  • Connect LED to the motor (as a generator) Terminal by flexible wires.
  • Tightly fix metal clip on motor on wood piece.

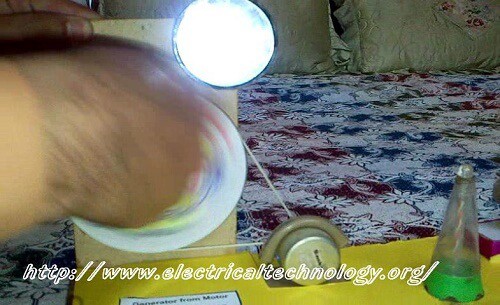

  • Fix a small plastic pulley on the threaded end of the motor. connect the small and big pulley with a large rubber band. When rotate & turn the handle, the armature will rotate in the magnetic field (in the case above, Motor will work as a generator). This spinning armature will generate a current in the coil which will light up the LED.

Note That Generator works only in one direction.

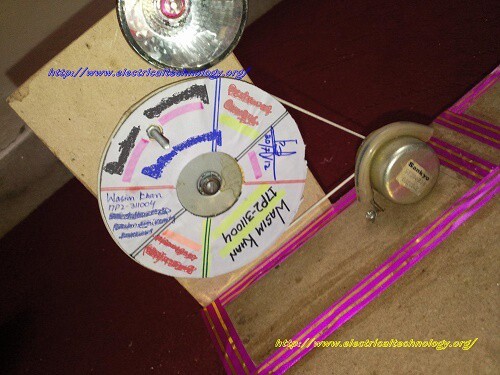

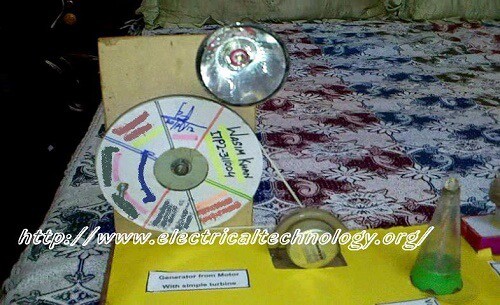

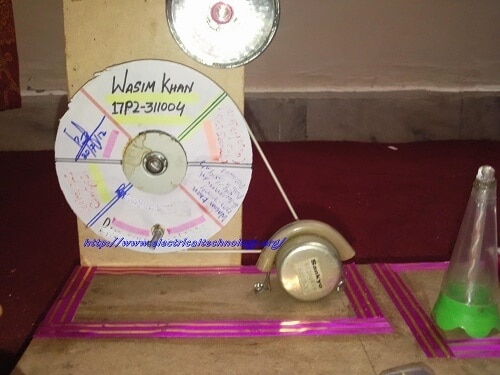

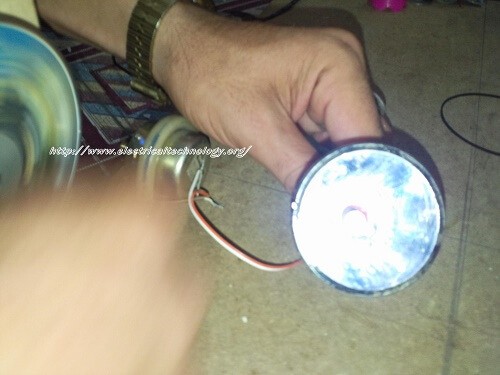

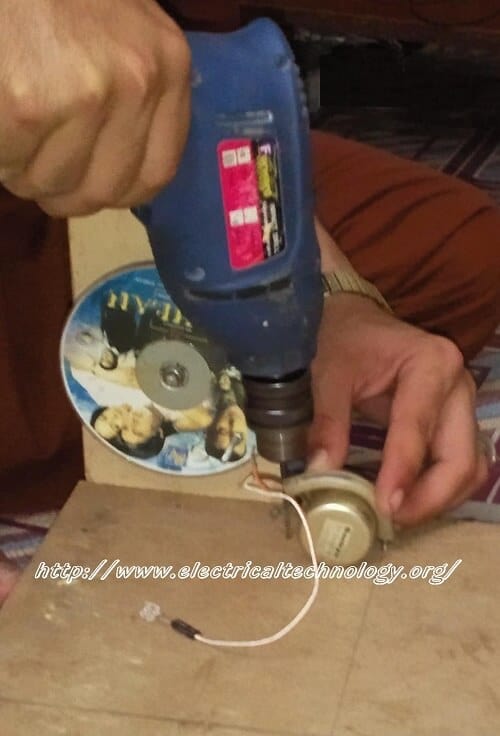

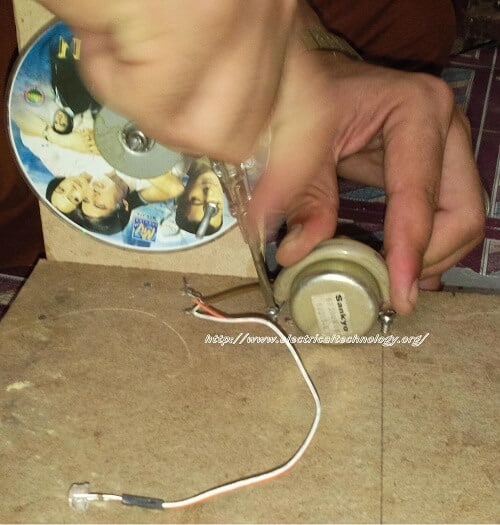

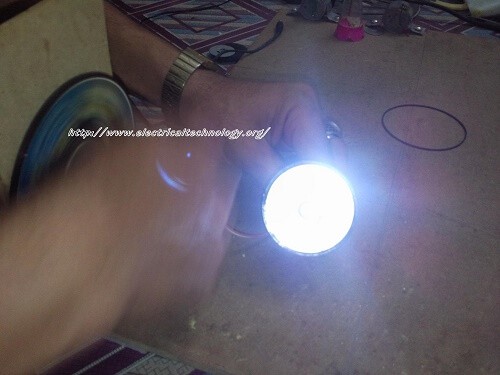

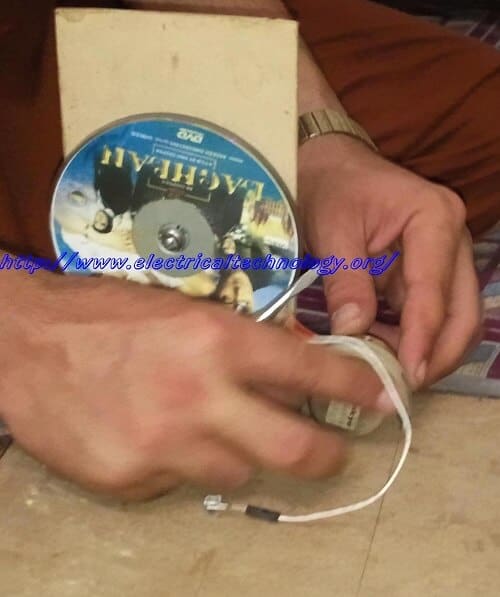

Image Story of Generator from Motor (With Simple CD’s Turbine) . ( CD Disc Generator) from Trash Step by Step Procedure.


Note: Video (Step by Step procedure) is Coming Soon….

Read More about Simple Projects from trash like this here: Simple Electrical Projects
