Identification of CTL and Non-CTL Panels and Circuit Breakers

CTL Panels & Breakers

CTL stands for Circuit Total Limitation. It is a safety feature used in modern load centers, electrical panels, and circuit breakers. This feature has been required since 1965 by NEC to limit the total number of circuits that can be installed in a panel to prevent panel overcrowding and overheating.

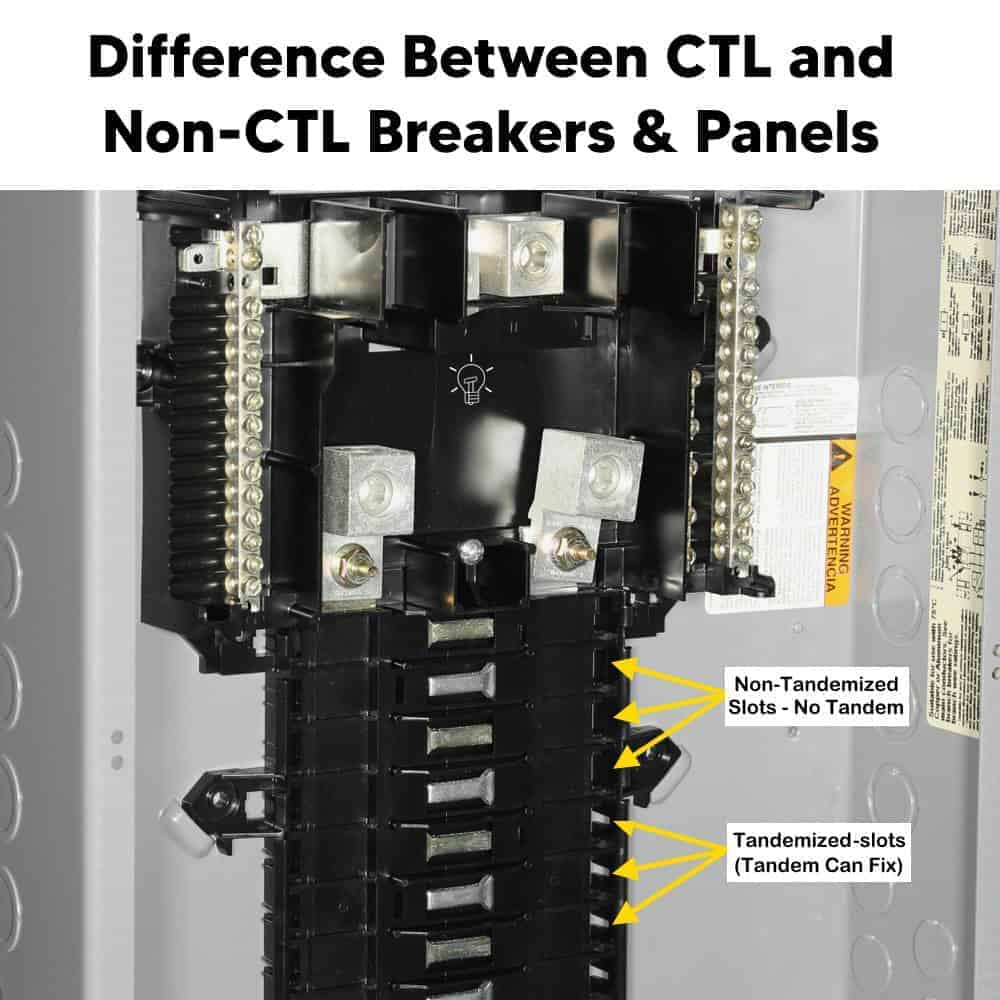

A CTL panel is designed with mechanical rejection features that prevent installing more circuit breakers than the panel is rated for or designed to handle.

It contains rejection tabs or notches on the bus stab or breaker slots and allows only approved tandem (duplex) breakers in designated spaces. This feature was Introduced after the circuit limit rule in the NEC.

CTL vs Non-CTL Breakers

In simple terms, a CTL version of panel with special design prevents installing extra breakers beyond the panel’s listed circuit capacity. Thus, CTL breakers only fit in CTL-listed panelboards or load centers. Also, the panel itself prevents installing extra tandem/duplex breakers in non-approved slots. Hence, it ensures the maximum number of circuits specified by the manufacturer is not exceeded.

Tandem Breakers Compatibility - CTL vs Non-CTL

The purpose of CTL load center is to stop electricians from overcrowding the panel with additional circuits that could overload the busbars.

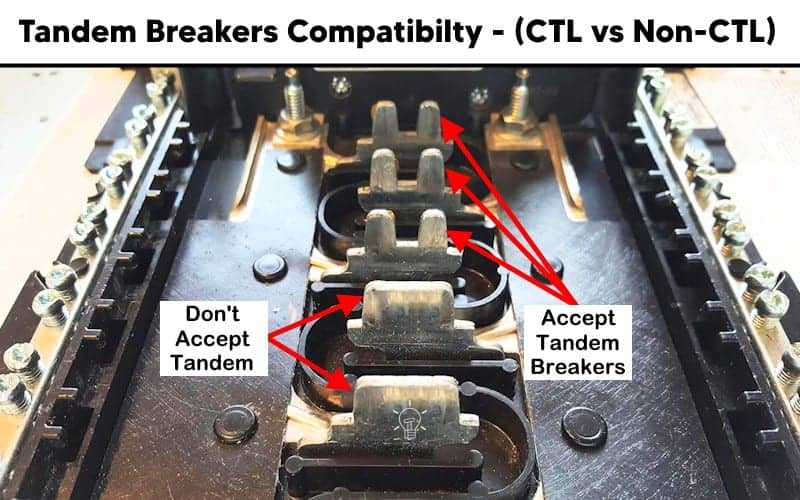

For example, a CTL electric panel might be labeled “20/30” which means 20 breaker spaces / 30 circuits. In this case, only certain spaces allow tandem breakers to reach a maximum of 30 circuits. If you try installing tandem breakers in non-approved slots, the rejection tab prevents it.

Good to Know: As a quick thumb rule for electricians

  • CTL = Controlled Tandem Locations i.e. Tandem breakers only allowed in specific slots
  • Non-CTL = Tandem anywhere.

How to Identify a CTL Panels & Breakers

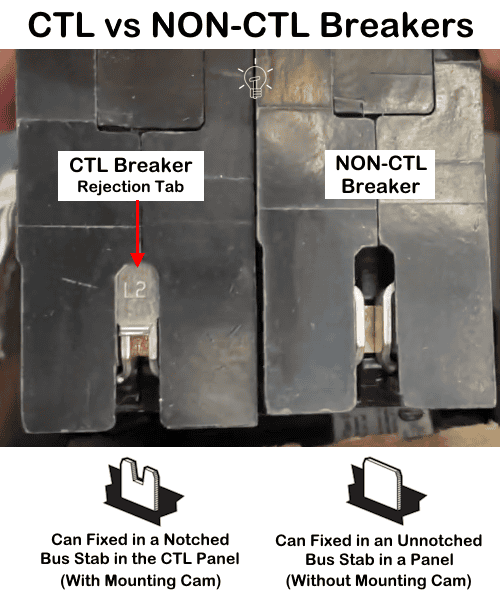

If there is a breaker rejection notch, tab, plastic foot  on bus connection side, it is a CTL load center. This tab or notch prevents installation in non-approved slots of the panel. Moreover, in CTL load centers, panel label printed on it shows circuit limits and markings such as “CTL Type, CTL Class, CTL” or circuit capacity.

Similarly, look inside the panel at the breaker slot where the breaker attaches to the bus stab. In CTL panels, some slots have rejection grooves or physical barriers. It means, tandem breakers only fit in specific spaces.

Difference Between CTL and Non-CTL Breakers & Panels

In addition, It can be identify by look at the panelboard nameplate label.

For example, if it says “20 Spaces / 30 Circuits”, it means 20 breaker slots. Only certain slots allow tandem breakers for maximum 30 circuits. If the panel enforces this limit physically, it is a CTL panel.

Good to Know: CTL panels are associated with Tandem breakers (also known as duplex, twin, 2-in-1) where two breaker are available in a the size of a single breaker. It means, two circuit can be fed through a single breaker.

Non-CTL Breakers & Panels

A Non-CTL panel does not have circuit-limiting rejection features i.e. breaker slots do not restrict installing tandem breakers. In other words, more breakers can physically fit than the panel was originally designed for.

It means, all breakers can snap over the hot busbar and if overcrowded (use of more breakers than the designated numbers), it may cause overloading, overheating and hazardous fire.

Non-CTL was common in older panels manufactured before 1965–1968. Without CTL restrictions, people often installed too many circuits, leading to overloaded busbars, excessive heat and fire hazards.

Maximum Number of Breaker Allowed and Tandem Compatibility in Electrical Panel Bus

Good to Know:

  • A non-CTL breaker will fit in a CTL panel (in tandemized-slots), but this is a code violation. However, a CTL breaker often will not fit into a non-CTL slot (i.e. non-tandemized-slots).
  • CTL panels limit the number of breakers you can install. Non-CTL panels do not have that limitation.

How to Identify a Non-CTL Breakers & Panels

If there is no rejection tab (notch) beside the busbar(s), it is a Non-CTL panel and the breaker can snap into almost any slot.

Similarly, If the breaker looks completely flat on the back, it is usually Non-CTL breaker. In addition, slots are uniform with no rejection feature and tandem breakers can fit in any position.

In addition, panels manufactured before 1965–1968 were generally Non-CTL because the circuit limiting rule was introduced later in the National Electrical Code.

Good to Know: Typical old Non-CTL panels prior 1965 include brands like, Federal Pacific, Zinsco, and early Square D panels. These often allowed unlimited tandem breakers.

Why Non-CTL Breakers Still Exist

Although new panels are CTL-type, Non-CTL breakers are still manufactured for replacement purposes in older panels that originally did not have CTL rejection features.

However, using a Non-CTL breaker in a CTL panel violates the listing requirements of the panel and is generally considered a violation of NEC installation rules (such as equipment being installed according to listing and labeling as per NEC 110.3(B)).

Good to Know: If you see tandem breakers installed in almost every slot, it usually means either an old Non-CTL panel, or someone installed Non-CTL breakers in a CTL panel (a code violation).

Precautions:

  • Always disconnect the power supply by switching OFF the circuit breaker at the main service panel before performing any electrical work.
  • Electrical equipment must be installed according to manufacturer instructions as required by the NFPA and NEC 110.3(B)).
  • Never touch the terminal screws above the main breaker. These terminals are always energized and remain live even when the main breaker is switched OFF.
  • If you are unsure about any part of the installation, consult a licensed electrician and ensure compliance with applicable local electrical codes.

Disclaimer: Electrical work is dangerous. The author assumes no responsibility for any loss, injury, or damage resulting from the use or misuse of this information, including improper circuit installation.
