Difference Between GFCI and Circuit Breaker

Main Difference between a Circuit Breaker and a GFCI

Electricity, like fire, is a good servant but a bad master. When kept under control, it is highly useful; however, if it gets out of control, it can cause serious injuries or significant damage to a building. Therefore, multiple types of protective devices are used to reduce electrical hazards. Circuit breakers and GFCIs are two commonly used electrical protection devices in residential installations. Although both provide protection against electrical faults, their functions and purposes are quite different.

• Related Post: Difference Between GFCI and AFCI

The following figure illustrates the differences and terminal wiring of single-pole and two-pole standard circuit breakers, as well as GFCI breakers.

Before discussing the differences between a circuit breaker and a GFCI, it is important to first understand the basic operation and purpose of each device.

Standard Circuit Breaker

A circuit breaker is an automatically operated switching device designed to protect an electrical circuit from overcurrent conditions such as overloads and short circuits. It provides protection against abnormal current flow by detecting excessive current and automatically interrupting the power supply. By tripping under fault conditions, the circuit breaker helps prevent damage to wiring, connected equipment, and the building’s electrical system.

The current rating marked on a circuit breaker and class type are very important to consider for circuit protection. The breaker trips and interrupts the circuit whenever the current exceeds its rated limit. Excess current can occur for several reasons, including circuit overloading, short circuits, or large current surges on the supply lines. Overloading typically results from connecting multiple high-power loads to a single circuit or from a faulty appliance drawing excessive current. Short circuits usually occur when conductors come into direct contact due to damaged insulation, loose connections, or deteriorated wiring.

For example, a circuit breaker rated at 15 amperes will automatically trip and interrupt the circuit when the current flowing through it exceeds 15 amperes.

Circuit breakers are installed in the main breaker panel or distribution board of a building. Each circuit breaker controls the power supply to a specific room or designated area. If an abnormal current condition occurs within that area, the corresponding circuit breaker trips and disconnects power to all outlets and loads on that circuit. To restore power, the circuit breaker must be manually reset at the breaker panel after the fault condition has been identified and corrected.

• Related Post: Difference between Fuse and Circuit Breaker

GFCI (Ground Fault Circuit Interrupter)

A Ground-Fault Circuit Interrupter (GFCI) is a electrical protective device designed to reduce the risk of electric shock. In a proper grounding system, It continuously monitors the current flowing in the ungrounded (hot) and grounded (neutral) conductors and trips the circuit within milliseconds if it detects an imbalance caused by current leaking to ground. This rapid disconnection helps prevent serious injury or electrocution, especially in situations where a person may come into contact with energized parts.

GFCIs are commonly used in locations where moisture, water, or damp conditions increase the likelihood of ground faults. According to the National Electrical Codes (NEC) – Article 210.8, GFCI protection is required in areas including bathrooms, kitchens, laundry rooms, garages, basements, outdoor outlets, and near sinks or water sources.

GFCI protection can be provided through GFCI receptacles or GFCI circuit breakers, depending on the application and installation requirements.

GFCI Circuit Breaker

A GFCI (Ground-Fault Circuit Interrupter) breaker is a circuit breaker installed in the electrical panel that provides both overcurrent protection and ground-fault protection. It continuously monitors the current flowing out on the ungrounded (hot) conductors and returning on the grounded (neutral) conductor. If an imbalance typically as small as 4-6 mA is detected, indicating current leakage to ground, the breaker trips immediately to reduce the risk of electric shock.

A GFCI circuit breaker provides protection against both overloads (including those caused by short circuits) and ground-fault conditions. On the other hand, a standard circuit breaker provides protection only against overloads and short circuits.

The “TEST” button on a GFCI breaker is used to verify that the ground-fault protection mechanism is operating correctly. When pressed, the button creates a small, intentional current imbalance inside the breaker, simulating a ground-fault condition. If the breaker is functioning properly, it will trip immediately, cutting power to the protected circuit.

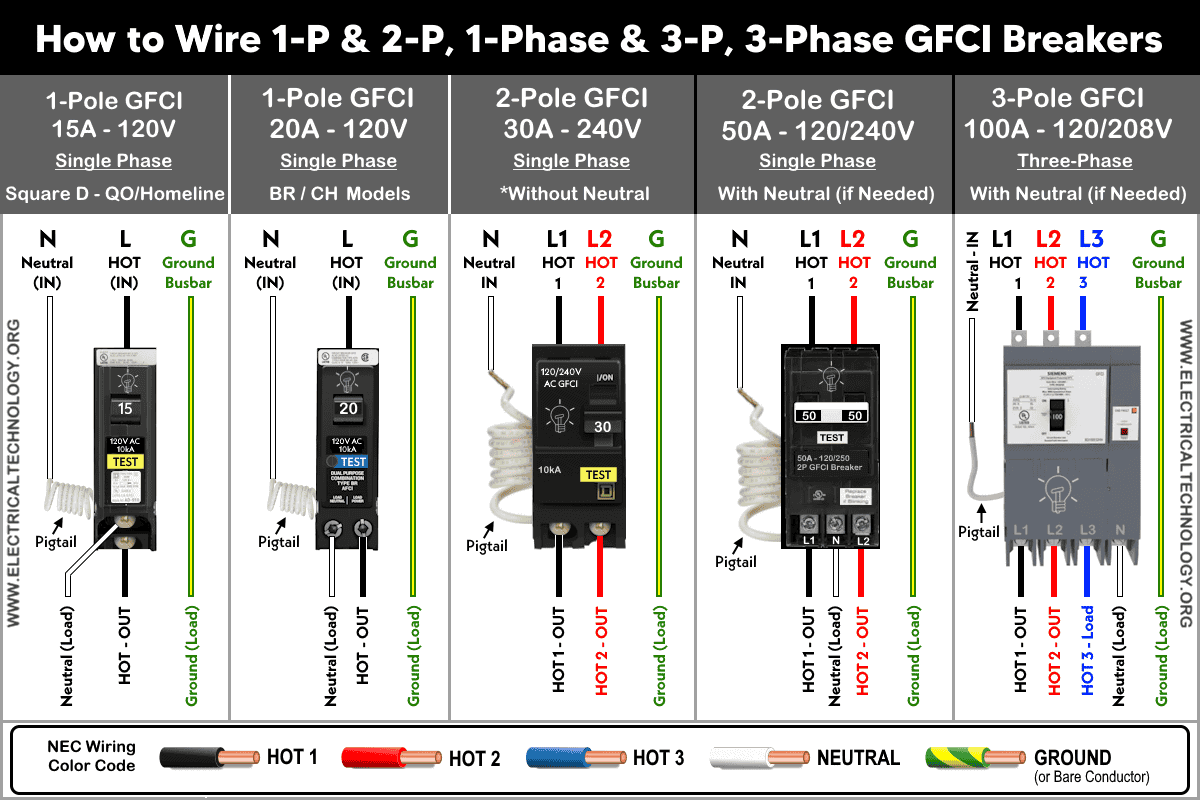

The following figure shows the different wiring connections for single-pole, two-pole, and three-pole GFCI breakers, both with a neutral connection and without a neutral connection.

When to Use a GFCI Breaker

A GFCI breaker is used when ground-fault protection is required for an entire branch circuit rather than a single outlet. It is especially useful when multiple receptacles or hardwired loads are on the same circuit, or when downstream receptacles are not easily accessible for testing and resetting. It is also preferred when panel-level protection simplifies compliance with NEC Article – 210.8(A) & (B) requirements.

Where to Use a GFCI Breaker

GFCI breakers are commonly used in areas requiring GFCI protection under the NEC-Article – 210.8(A), such as bathrooms, kitchens, garages, basements, laundry areas, outdoors, and around pools or spas. They are also suitable for dedicated circuits supplying equipment in damp or wet locations. Installing the protection at the panel ensures all connected devices on the circuit are protected.

GFCI Outlet (Receptacle)

A GFCI outlet, also called a GFCI receptacle, is a point-of-use device designed to protect people from electric shock caused by ground faults. It performs the same current-imbalance monitoring as a GFCI breaker but is installed at the receptacle location. Most GFCI outlets include “TEST” and “RESET” buttons for manual verification of proper operation.

A GFCI outlet does not trip due to circuit overloading or a short circuit in the connected appliance. Instead, it responds only to ground-fault conditions. In the event of an overload or short circuit, the upstream circuit breaker supplying the GFCI receptacle will trip to interrupt the circuit.

The “TEST” button is used to verify proper GFCI operation. When pressed, it momentarily creates an imbalance between the ungrounded (hot) conductor and the grounded (neutral) conductor within the device, causing it to trip.

The “RESET” button is used to restore power after the GFCI has tripped. However, it should not be pressed until all connected appliances or loads have been disconnected.

When to Use a GFCI Receptacle

A GFCI receptacle is used when protection is needed at a specific outlet rather than for an entire circuit. It is often selected for retrofit installations, cost-effective upgrades, or when only one or a few receptacles require GFCI protection. It can also provide downstream protection to additional standard receptacles when wired using the LINE and LOAD terminals.

Where to Use a GFCI Outlet

GFCI outlets are installed in locations where receptacles are exposed to moisture or increased shock risk, such as bathrooms, kitchens (countertop outlets), garages, unfinished basements, laundry rooms, and outdoor areas. They are also commonly used near sinks and wet work surfaces.

Related Post:

• Should GFCI Protection Be in the Main Panel or Receptacle?
• Difference Between Relay and Circuit Breaker

Key Differences Between Circuit Breaker and GFCI

In short, both circuit breakers and GFCIs are protective devices used in a building to provide protection against electrical hazards. GFCIs are specifically required in wet and damp locations to protect people from electric shock caused by ground faults (as per NEC 210.8), while circuit breakers are installed in electrical panels to protect conductors and equipment from electrical fires resulting from overloads and short circuits.
