How to Wire a Smart Outlet – Wiring a 15A Wi-Fi Receptacle in Smart and Standard 120/240V Panels

Table of Contents

What is a Smart Outlet?

Smart Wi-Fi outlets provide a practical entry point into residential automation, enabling remote load control, scheduling, energy monitoring, and integration with common smart-home ecosystems. These devices transform an ordinary home into a smarter, more convenient living space. They allow you to control the ON/OFF operation of connected devices from anywhere using a mobile app or a simple voice command through a compatible voice assistant.

Smart devices (outlets, switches, dimmers) from manufacturers such as Leviton and Legrand are designed to retrofit into standard single-gang electrical boxes, which makes them a direct functional replacement for conventional duplex receptacles in branch circuits for residential applications.

One of the key advantages of these smart receptacles is installation compatibility and support for switched outlet to control from anywhere using switch companion devices. In addition, no hub is required for wireless operation. In most cases, they can replace ordinary receptacles without structural modification to the wall box, if:

The electrical box has sufficient cubic-inch capacity for the additional conductor volume.
A neutral conductor is present (required for most smart outlets).
The circuit amperage rating matches the device rating (e.g., 15A or 20A).

If desired, the smart outlet can later be replaced again with a standard, non-smart receptacle using the same wiring configuration, allowing flexibility for future changes or system simplification.

In the following wiring guide, we will show the proper method for removing an existing standard receptacle and installing a compatible smart Wi-Fi outlet. The procedure follows conventional residential wiring practices for 120V circuits in a 120/240V smart panel or standard panel. The given wiring diagrams illustrates the conductor identification, termination methods and app setting for remote control of the load devices.

Rating & Features of a Smart Outlet

Name: Smart Wi-Fi Outlet – NEMA 5-15
Poles: 2-Poles, 3 Wires Grounding
Voltage: 125V Single-Phase AC Supply – 60 Hz
Current: 5A LED/CFL – 15A Magnetic Load
Wattage: 1500W Incandescent/Halogen Lamps or ¾ HP Motor
Wire Size: #14AWG Copper
Termination: Quickwire Push-In, Side Wired – Screw Termination and Mounting
Compatibility: Amazon Alexa, Google Assistant (Hey Google / Google Home), Apple HomeKit/Siri, SmartThings and Sonos.

Wiring a 15A Wi-Fi Smart Outlet in a Smart Panel

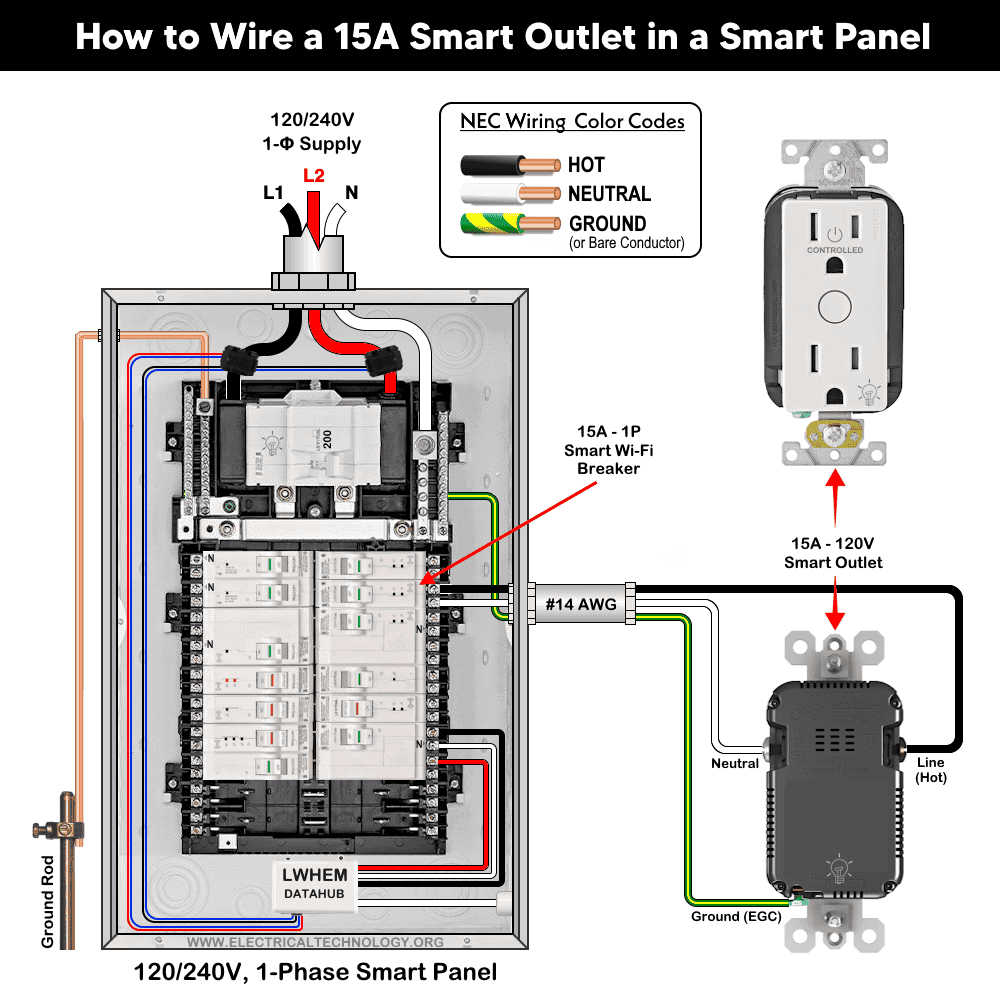

As shown in the wiring diagram, a 15A, 120V smart outlet (such as Decora D215R and ZW15R by Leviton) is supplied through a 15A, single-pole (1P) Wi-Fi smart breaker installed in a smart 120V/240V panel.

Click image or open in a new tab to enlarge

When installing a new smart outlet or replacing an existing standard receptacle, connect the branch circuit conductors from the 15A breaker in the main panel following the given simple steps.

⚠️: Turn off power by switching-off the main breaker in the panel before starting any work.

Step 1: Confirm Circuit Rating

Make sure the outlet is on a 15-amp, 120-volt circuit protected by a 15A single-pole breaker.

Step 2: Verify Wire Size

Because this is a 15-ampere circuit, use minimum #14 AWG copper conductors as required by NEC Table 310.16.

Step 3: Connect the Wires

Strip the insulation (generally 3/4″ (19 mm or 1.9 cm) for side wiring and 1/2″ (12.7 mm or 1.27 cm) for back wiring) or as per requirement and terminate the conductors to the outlet as follow.

Connect the black (Hot or Line) wire to the brass or black screw.
Connect the white (Neutral) wire to the silver screw.
Connect the bare copper conductor, or the green or green/yellow-striped conductor (Ground), to the green grounding screw.

Make sure to tighten all terminal screws (approximately 14-18 in·lbs (1.6-2 N·m) of torque) or as per given ranges of torquing on the device nameplate.

Step 4: Secure and Restore Power

Carefully mount the outlet, install the cover plate, restore power, and test operation.

Wiring a Smart Outlet with a Standard Outlet

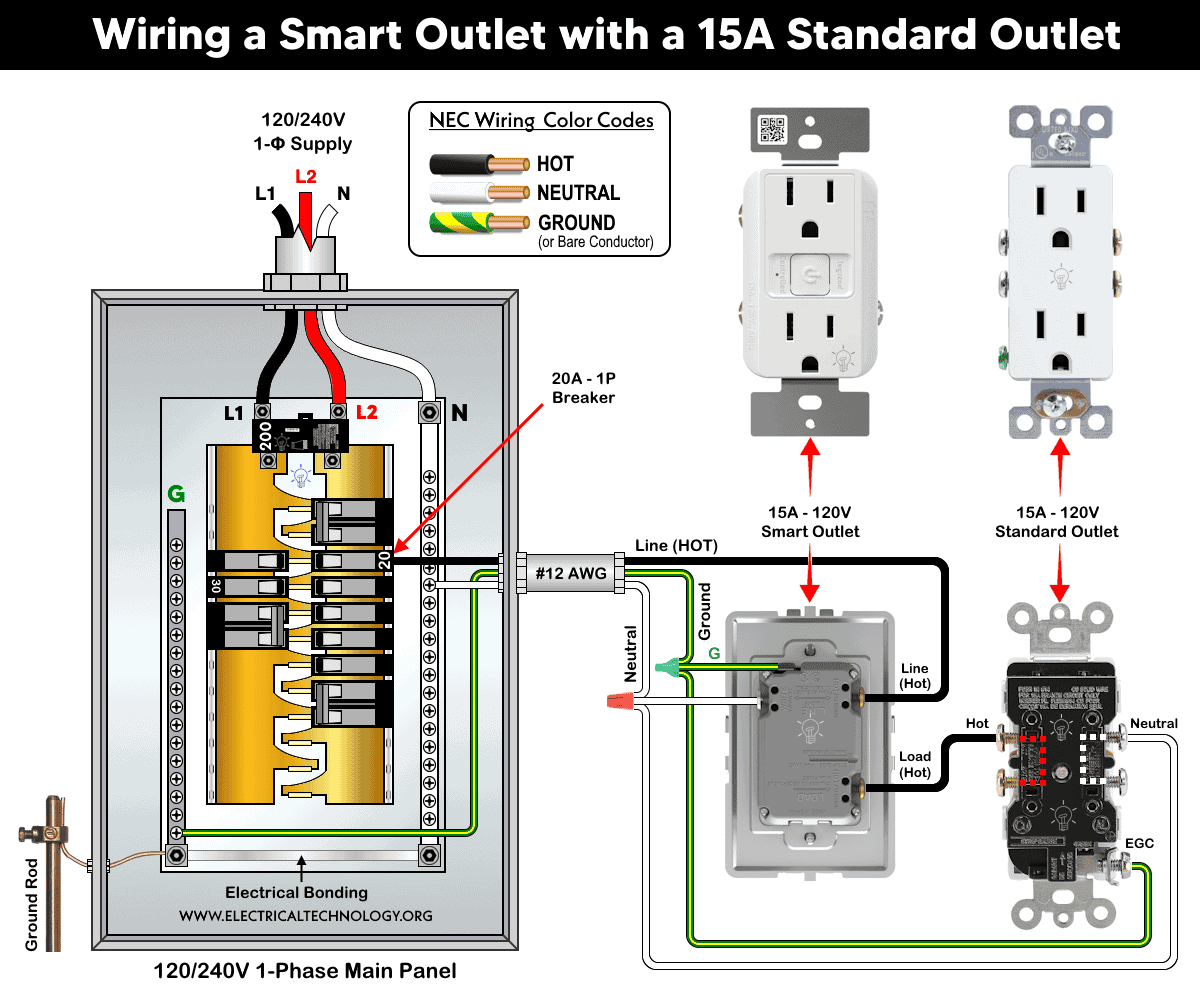

The following wiring diagram shows a 15A, 120V smart receptacle (WWMRR15) is wired with an ordinary 15A outlet supplied by a 15A, 1P breaker in the main 120V/240V panel.

Click image or open in a new tab to enlarge

Terminate the #12 or #14 AWG branch circuit conductors in box 1 to the smart receptacles as follow:

Ungrounded (Hot) Conductor: Black conductor to brass or black terminal screw.
Grounded (Neutral) Conductor: White conductor to silver terminal screw.
Equipment Grounding Conductor (EGC): Bare copper or green (or green/yellow-striped) conductor to green grounding screw.

Now, connect the load side terminal of smart outlet to the brass screw of standard 15A outlet in box 2. Connect the neutral and ground wires someway as shown in the wiring diagram.

Note: This feature (load terminal in the smart outlet) is only available in 1 gang Radiant® Smart Wi-Fi 15A outlet by Legrand.

For Wi-Fi lighting control, including scheduling and remote ON/OFF operation, use the My Leviton app for Leviton Decora Smart devices. For the Radiant® Smart Wi-Fi Outlet by Legrand, use the Home + Control app. Both applications are available on the Google Play Store (Android) and Apple App Store (iOS).

After completing the installation, open the appropriate app and follow the on-screen instructions to add your new device. Once the setup process is complete, you will be able to control the device’s ON/OFF control or scheduling function remotely using your smartphone.

Instructions & Precautions

Use #14 AWG for 15A circuit and #12 AWG for 20A circuits.
Strip the insulation as per requirement given in the back side or sticker printed on the device.
Terminate the screw as per given torquing on the device nameplate.
A 15A outlet can’t and shouldn’t be used for 20A load.
Per NEC Table – 310.16 , 210.24.(1) and 240.4(D)(4), the correct breaker and wire size for a 15-Amp, 125V (NEMA 5-15R) outlet is #14 AWG copper or #12 AWG Aluminum.
Use #14/2 cable (hot wire, a neutral and one ground) for a 15A-120V breaker and receptacle/outlet.
A 15A outlet can be used for a 12A continuous load and a maximum 15A non-continuous load (210.19(A)), 215.2, and 230.42(A).
15A, 120V outlet and receptacles should be installed on 15 amp breaker only.

Warning

Make sure to disconnect the power supply by switching OFF the breaker in the main panel before doing any electrical work.
If you are unsure, contact a licensed electrician to do it according to the local area codes.
The author will not be liable for any losses, injuries, or damages from the display or use of this information or if you try any circuit in wrong format. So please! Be careful because it’s all about electricity and electricity is too dangerous.
