How to Wire a Smart Switch Companion with a Smart Switch
Wiring a Smart Switch Companion with a Smart Switch for Multi-Way Switching
What is a Smart Switch Companion
A Smart Switch Companion is a specialized secondary switch designed to extend control of lighting or fan loads from different locations. Unlike a standalone smart switch, the companion does not function by itself i.e. it must be wired with a primary smart switch, dimmer, or fan speed control devices (such as Leviton’s Smart / Digital switches and dimmers).
These companion devices enable you to operate the same lights or devices from multiple locations, which is especially useful in hallways, staircases, or large living spaces where more than one control point is desired.
Although companion switches look like a normal wall switch, their role is to coordinate with the main smart switch rather than directly switch power to the load. When wired correctly as part of a multi-location setup, they send signals through the circuit to the primary device, allowing synchronized on/off control from each location.
Despite the basic version (DD0SR-1Z for 120V), the DD0SR-DLZ (for 120-277V) model, include a locator LED that lights when the load is off, which makes it easier to find the switch in the dark.
Smart Switch Companions come in different variants to match installation needs. For example, certain models support more remote locations (up to nine additional companion units), while others offer a neutral-optional wiring configuration for homes without a neutral present in every switch box.
Smart Multi-Way Wiring
Traditional 3-way switch wiring passes power on and off across mechanical contacts between two switches. With smart and companion switches, digital communication replaces mechanical switching. The companion does not switch the load directly, instead, it sends signals over a traveler wire to the primary smart switch, which controls the load.
A Smart Companion Switch (DD0SR-1Z or DD0SR-DLZ) must be paired with a compatible primary Smart or Digital switch, dimmer, or fan speed control to enable 3-way or multi-location switching (two or more control points).
Smart companion switches require:
- Neutral – for powering the device electronics.
- Line (hot) – to keep the device powered.
- Traveler wire – usually the extra conductor in your 3-wire cable run.
- Ground – safety ground must be connected.
Wiring Smart Switch Companion for 3-Way with & without Neutral
Installing a smart companion switch in a multi-way circuit alongside a primary smart switch lets you control the same lighting load from multiple locations. Unlike traditional mechanical 3-way switches, the smart companion switches need a neutral for proper operation.
The installation is differs from standard “old-school” wiring in 3-way and 4-way control and must be done following the manufacturer’s wiring guide to work correctly.
In the following wiring guide, we will show how to wire smart companion switches with compatible primary smart devices to control the same light or load from various locations (e.g., top and bottom of stairs, both ends of a hallway).
The wiring diagrams are provided for 3-way wiring installation in different cases, such as:
- Neutral present in all switch boxes
- Neutral present in only one switch box
- Installations without a neutral conductor
1. Before beginning the installation:
- Turn off power at the circuit breaker and verify the power is off with a voltage tester.
- Identify the Line (hot), Load, Neutral, Ground, and Traveler conductors in each wall box.
- You need a primary smart switch (or dimmer/fan controller) and one or more wired companion switches of the compatible type (e.g., DD00R-DLZ for dimming; DD0SR-DLZ for ON/OFF).
- Ensure the companion switches are used only with compatible primary Decora Smart / Decora Digital devices, and only a single primary is used in the circuit.
- A neutral wire must be present in each box. Without neutral, a companion will not power correctly.
2. Identify Conductors
- Turn power off and separate wires in each box.
- Briefly restore power and use a tester to identify which wire is the Line (hot). Mark it with tape.
- Turn power off again. Confirm you have a neutral bundle (usually multiple white wires tied together).
- Identify the traveler conductor (often the red in a 3-wire cable). This will carry digital communication between companion(s) and the primary switch.
3. Connect the Primary Smart Switch
At the location with the load (light fixture) connection:
- Line (Hot) from load connects to the Line Terminal of the smart switch.
- Load wire to fixture connects to the Load Terminal of the smart switch.
- Neutral connects to the neutral terminal.
- Ground connects to ground terminal.
- Traveler wire (YL/RD terminal) connects to traveler terminal on the companion.
4. Wire the Companion Switch(es)
Wire each smart switch companion in additional locations as follows:
- Line (Hot): Black terminal on companion from the branch circuit. (Not used in smart switch companion (DD0SR) when wiring with a smart switch (D315S/D215S) and neutral is available in both boxes. The wiring is different if DD0SR smart switch companion is wired with a smart dimmer switch (DDL06) and when neutral is available in only one box.
- Neutral: White terminal on companion.
- Traveler: to companion YL/RD terminal (this should match the traveler from the primary).
- Ground: companion ground screw.
The traveler wire allows the companion to send on/off or dimming commands digitally back to the primary switch. Similar to to standard 3-way switches, the three-way lighting circuit won’t work without traveler wires connections.
If you have multiple companions, wire them in parallel with the traveler and neutral so all companions communicate properly.

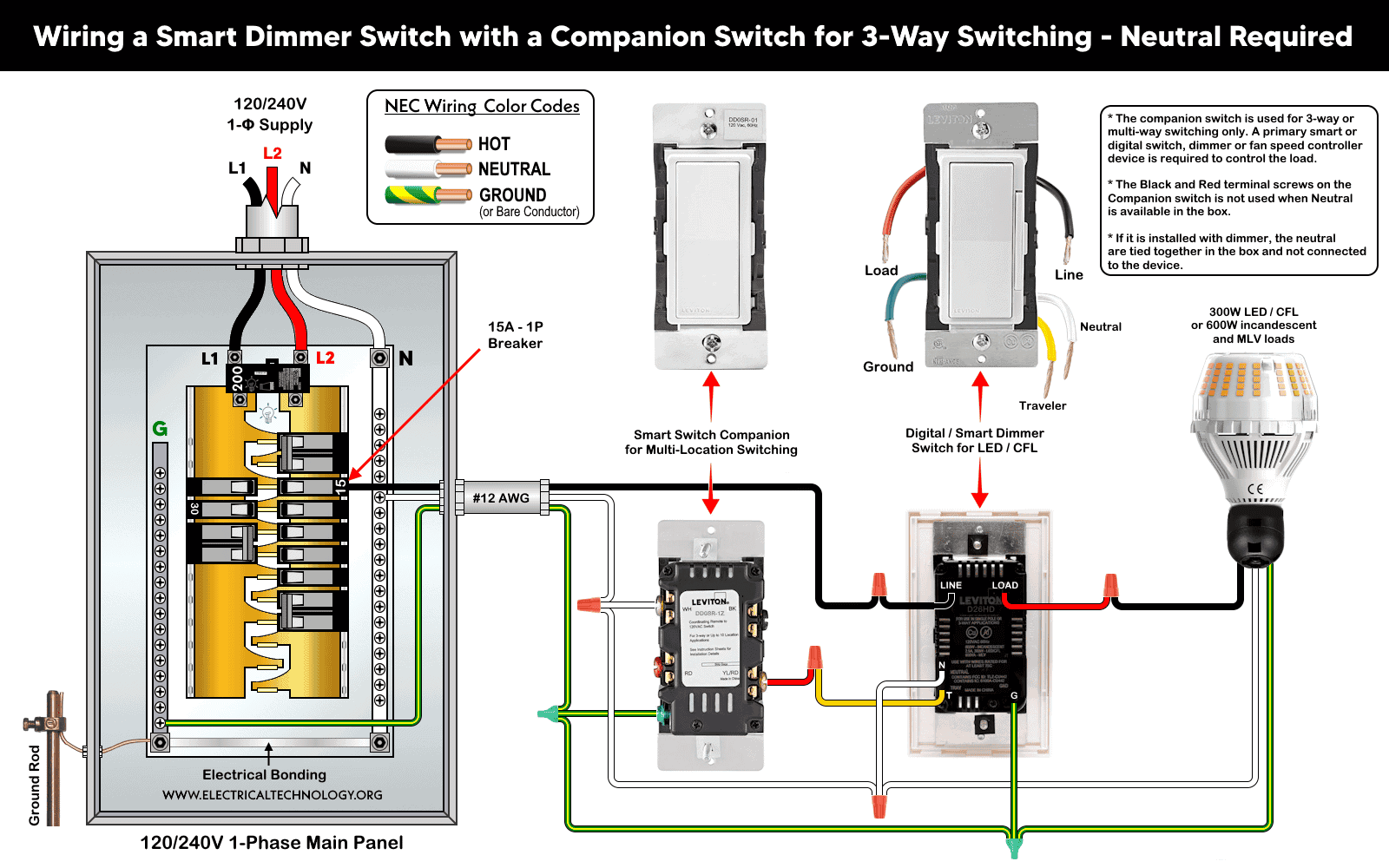

Wiring diagram of a smart switch companion (DD0SR-DLZ) with a built-in LED locator (operates at 120-277V AC) is wired with a smart switch (D315S / D215S) for 3-way switching.
Click image or open in a new tab to enlarge

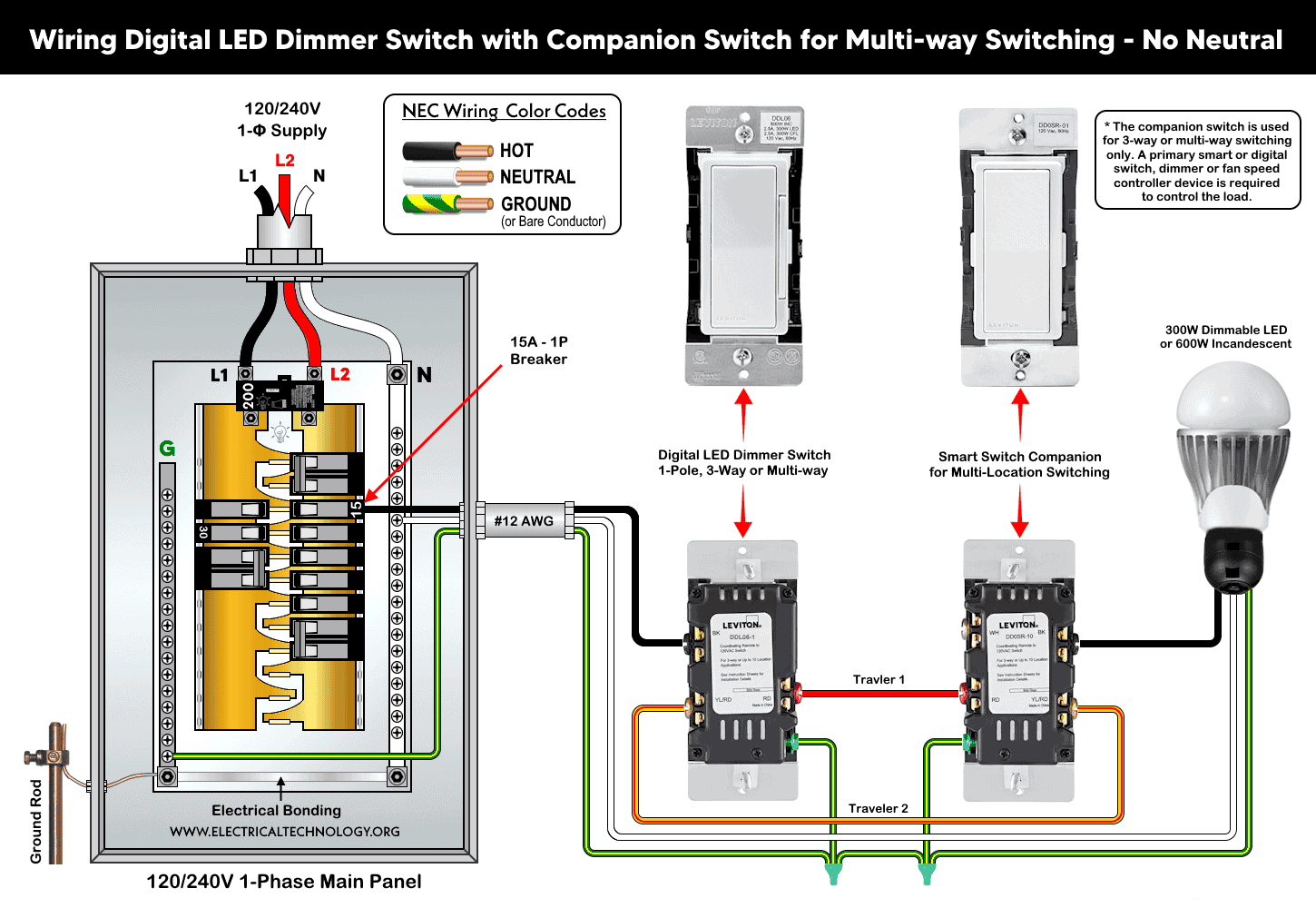

Wiring diagram of a smart switch companion (DD0SR-1Z) without an LED locator (operates at 120V AC) with a smart switch (D3115S/D215S) for multi-location-way switching.
Click image or open in a new tab to enlarge
5. Testing
Once all connections are made:
- Carefully push wiring back into the wall boxes and secure the devices and wallplates.
- Restore power at the breaker.
- Test control from the primary switch first (lights should turn on/off and dim as expected).
- Test each companion location to ensure on/off/dimming commands are registered at the primary.
If lights do not respond as expected:
- Confirm the primary is in the load box (not a companion).
- Ensure all neutrals and grounds are correctly tied in each box.
- Check that traveler leads match between companion and primary terminals.
Adding Additional Smart Switch Companions for Multi-Location Control
You may use four to nine smart switch companion devices with smart switch / digital dimmers to control the lighting from different locations.
After wiring the primary and first companion, all additional companion switches tie into the common traveler and power network using the same wiring configuration as shown above.
For setups with more than two control points (e.g., hallway with three or four switch locations).
To add more companions switches:
- Continue the Line, Neutral, Traveler, Ground bundle through each switch location.
- At every additional companion:
- Connect Line to companion Line terminal.
- Connect Neutral to neutral terminal.
- Connect Traveler to traveler terminal.
- Ground each switch.
- Confirm that all companions see power and are communicating properly with the primary.
This case is only possible where neutral is available in both boxes. If a neutral wire is not present at the companion location, you may use alternative smart dimmer switch / companion (DDL06) which is discussed in a separate post.
Wiring Connections for 3-Way Circuit Using Smart Switches
3-Way Wiring with a Neutral Wire in Both Boxes
For a reliable communication, a neutral wire is required for most smart devices, otherwise, you may use No-Neutral smart devices. As shown, this is a perfect scenario where both devices (and boxes) have neutral wire. This way, the primary controls the load and the companion simply signals state changes over the traveler.

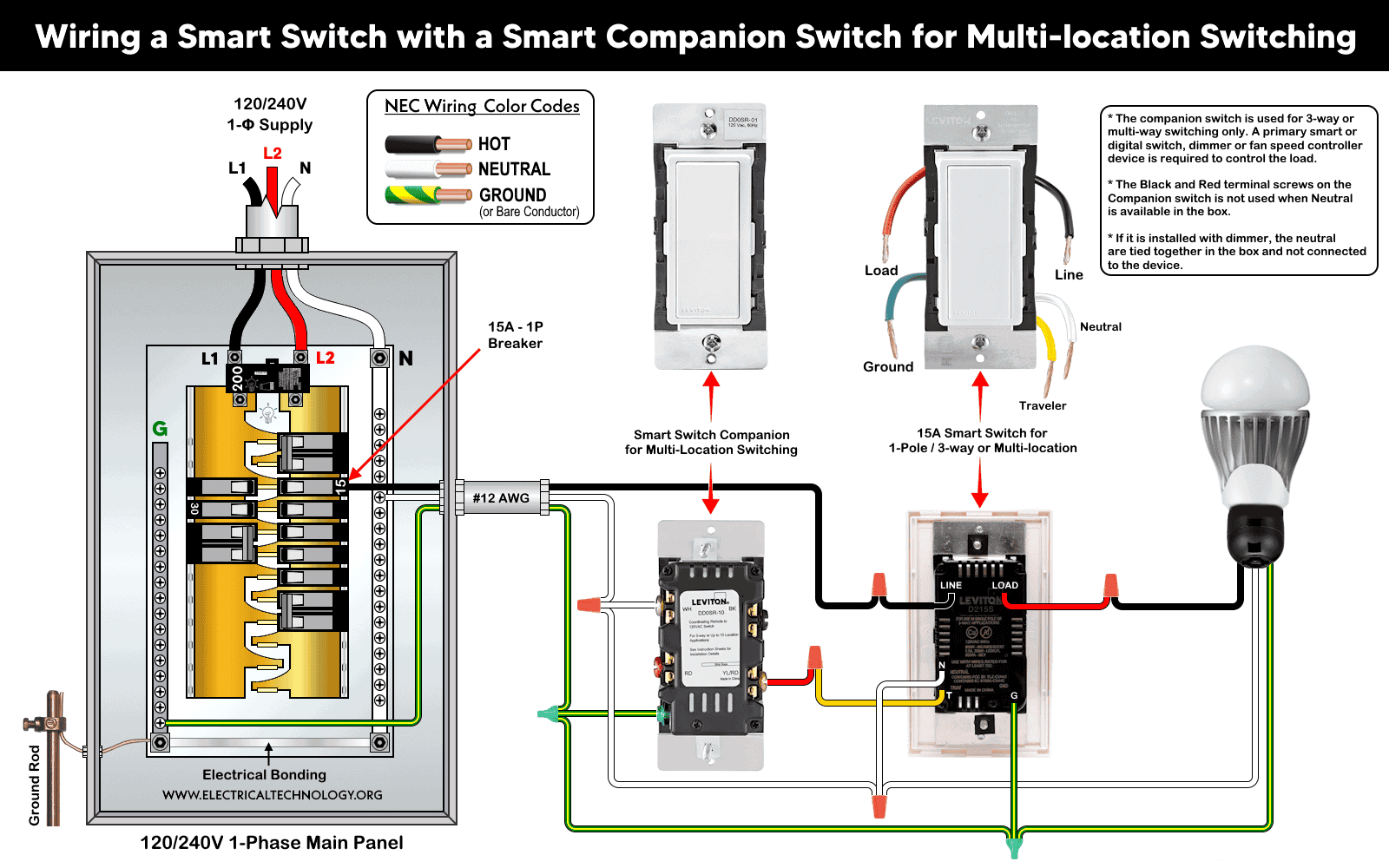

The following fig shows a 3-way wiring with neutral in both boxes using smart switch companion (DD0SR-1Z or DD0SR-DLZ) with smart switches (D215S). The same configuration can be wired using smart dimmer companion switch (DD00R-DLZ) with a smart/digital dimmer switch (DDL06, DW6HD, DH6HD and D26HD).
3-Way Wiring with a Neutral Wire in One Box
In some older homes, only one switch box has a neutral bundle in it. Smart switches/dimmers and companions require a neutral for internal power. If only one box has neutrals, you must install the primary (master) device in that box. Otherwise, follow the given wiring diagram.

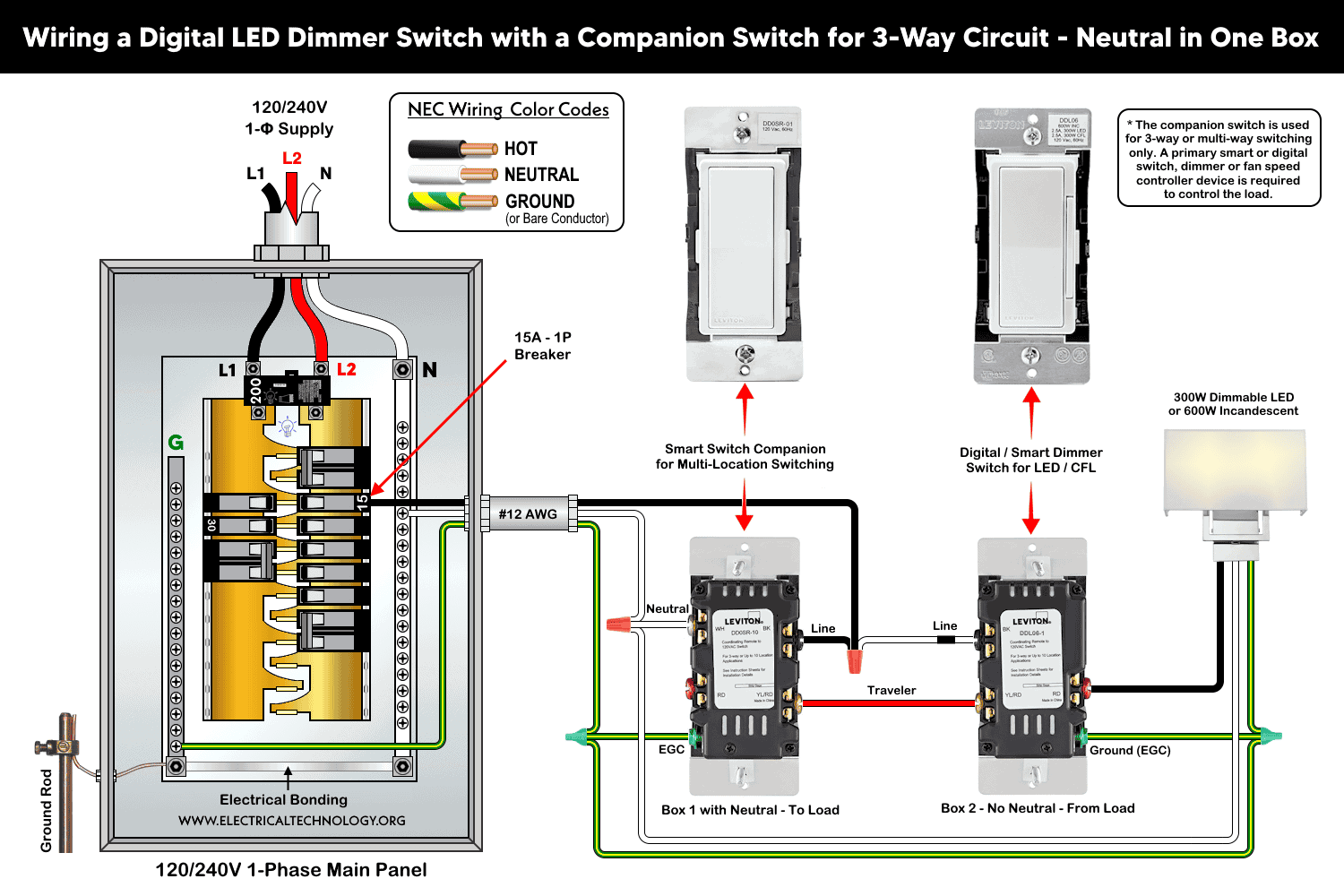

The following fig shows a 3-way wiring with neutral in both boxes using smart companion switch (DD0SR) with a smart dimmer switch (DDL06).
3-Way Wiring without Neutral Wire (No Neutral in Either Box)
When both switch boxes lack a neutral (typical in older homes), classic smart devices requiring neutral cannot be powered in a standard way. In this case, you may use No-Neutral smart devices or wire-free Anywhere Switch or Dimmer Companion (no wiring required at all).
The DD0SR-1Z and most Smart wired companions assume a neutral is present for digital communication and power. Without neutral wiring, the standard companion cannot operate directly.
One possible solution is to use a smart dimmer (DDL06) with a smart companion switch (DD0SR) without neutral for 3-way switching is shown below.
Instructions & Precautions
- Make sure to disconnect the power supply by switching OFF the breaker in the main panel before doing any electrical work.
- Per NEC Table – 310.16 , 210.24.(1) and 240.4(D)(4), the correct breaker and wire size for a 15-Amp, 120V circuit is #14 AWG copper. Hence, use #14 AWG copper / copper-clade conductors with 15A smart switches.
- Other than built-in wires, strip 3/4″ (19 mm) for side wiring and 1/2″ (12.7 mm) for back wiring) insulation and tighten all terminal screws 14-18 in·lbs (1.6-2 N·m) of torque or as per given termination ranges.
- The wire length from smart switch to other companion device should not exceed 300 ft (90 meters).
- 15A/120V switches and outlets/receptacles should be installed on 15A breaker only.
- Smart devices are for indoor use only.
- If you are unsure, contact a licensed electrician to do it according to the local area codes.
- The author will not be liable for any losses, injuries, or damages from the display or use of this information or if you try any circuit in wrong format. So please! Be careful because it’s all about electricity and electricity is too dangerous.
