How to Wire 1-Pole & 2-Pole Smart GFCI Breakers in a 120/240V Smart Load Center

Table of Contents

Smart GFCI Circuit Breakers

Similar to a smart circuit breaker, smart GFCI breakers and dual-function AFCI/GFCI breakers are used in both conventional and smart load centers for home automation systems. These breakers can be monitored and controlled remotely through a smartphone app and can send notifications whenever the breaker trips or is reset.

A GFCI (Ground-Fault Circuit Interrupter) monitors the current balance between the ungrounded (hot) conductor and the grounded (neutral) conductor. If it detects a current imbalance as small as 5mA (indicating leakage to ground), it interrupts the circuit in less than one-tenth of a second. This rapid response helps prevent severe electric shock and reduces the risk of electrical fires by disconnecting power as soon as unintended current flow is detected.

Smart GFCI breakers are available from manufacturers such as Leviton and Eaton. In this wiring guide, we will demonstrate how to install and wire both 1-P and 2-P smart GFCI breakers in standard and smart 120/240V load centers.

Good to Know:

The NEC – 210.8(A) requires GFCI protection in areas of the home where moisture or grounding risks are present, such as kitchens, bathrooms, laundry rooms, workshops, basements, garages, and outdoor spaces such as pools.

A smart Ground-Fault Circuit Interrupter (GFCI) breaker is different from a smart GFCI GFCI outlet and Smart breaker. While a smart breaker and a smart GFCI breaker are wired in the same way, the smart GFCI version offers additional advantages over a conventional GFCI breaker.
A GFCI device will not protect against short circuit and overload. They only protect against ground faults.
Smart GFCI breakers are available in 1-pole and 2-pole having current rating of 15A to 60A.
Status LED Indicator on smart GFCI indicates protection, power & connectivity even the breaker is off.

Rating & Features of a Smart GFCI Breakers

Name: 2nd Gen Smart GFCI Branch Circuit Breaker with Remote Control
Poles: 1-Pole & 2-Poles – 2 & 3 Wires with Ground
Voltage: 120V, 120/208V & 120/240V – Single-Phase AC Supply – 60 Hz
Current: 15A to 60A
Short Circuit Current Rating: 10kA
Wiring: Plug-On
Control = Manual & Remote ON/OFF & Scheduling
LED Indicator = Status indication even when breaker is off
Compatibility: My Leviton App (To be used with Leviton Smart panel and requires the LWHEM-2 or LData Hub)

Wiring 1P & 2P Smart GFCI Breakers in a Smart Panel

The following wiring diagram shows a 1-pole 15A/120V (LB115-GS) and 20A – 240V (LB220-GST) and 50A, 2-pole 120/240V (LB250-GST) smart GFCI breakers in a smart 120V/240V load center by Leviton (LP220-BPD).

As shown in the fig, the smart breakers have the following wiring configuration

15A/120V – 1 Pole, 2-Wires, 1-Phase
20A/240V – 2 Pole, 2-Wires, 1-Phase
50A – 120/240V – 2 Pole, 3-Wires, 1-Phase

To wire a smart GFCI breaker in the panel, select the proper size of breaker and follow the following simple steps.

Turn OFF all power to the panel at the main breaker or upstream disconnect. Confirm power is OFF using a tester. Now, remove the cover and snap the plug-on breaker in the panel (hot and neutral) slots.

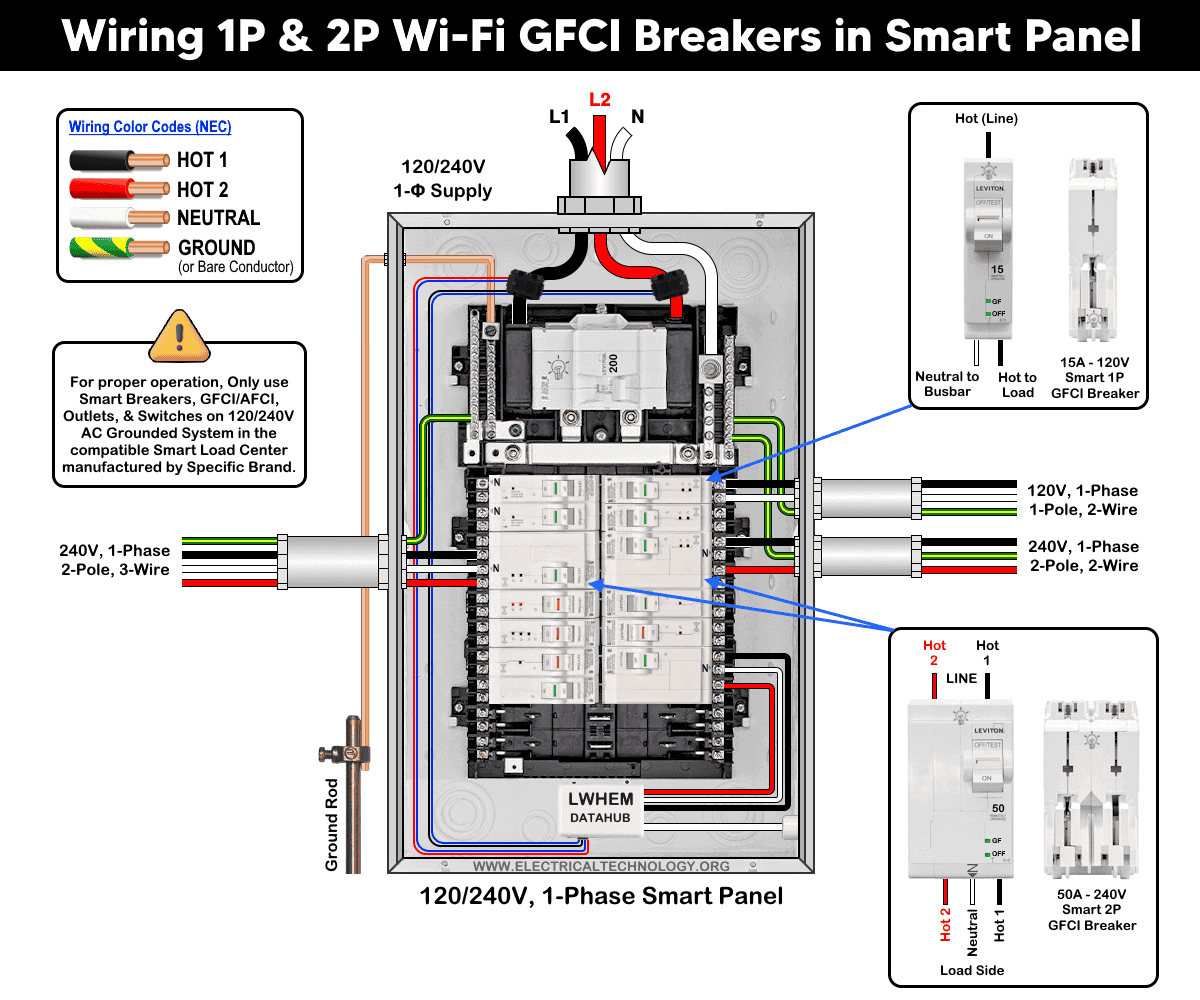

The following wiring diagram shows the 1P & 2P smart GFCI breakers for 2 wires & 3-wires 120/240V branch circuits

Click image or open in a new tab to enlarge

Wiring 1-Pole Smart GFCI Breaker – 120V – 2-Wires

As shown in the wiring diagram, a 1-pole 15A/120V smart GFCI breaker (the first breaker at the top left on the right side of the panel) is wired using #14 AWG conductors. It protects an ordinary 15A/125V outlet (NEMA 5-15 receptacle).

As it is a smart panel and breaker, the neutral conductor supplying the receptacle must be connected to the breaker’s neutral terminal, not to the neutral busbar in the main panel. This configuration allows the GFCI breaker to properly monitor both the hot and neutral conductors for ground-fault protection.

Wiring 2-Pole Smart GFCI Breaker – 240V – 2-Wires

Similarly, a 2-pole 20A smart GFCI breaker (third breaker from the top on the right side) is wired using #12 AWG conductors. It protects a 20A/250V outlet (NEMA 6-20 receptacle).

Because this 240V receptacle does not require a neutral conductor, the breaker’s neutral terminals (silver screws) remain unused.

Wiring 2-Pole Smart GFCI Breaker – 240V – 3-Wires

In addition, a 2-pole 50A 120/240V smart GFCI breaker (third breaker from the top on the left side) is wired to protect an EV rated 50A 125/250V receptacle (NEMA 14-50), especially used for EV charging.

Since this is a 120/240V three-wire circuit (two hot conductors and one neutral), a neutral connection is required. The neutral conductor must be connected to the breaker’s designated neutral terminal (marked “N”), not to the panel’s neutral busbar.

The wiring is little bit difference than the conventional GFCI breakers that use a factory-installed pigtail connected to the neutral busbar, this smart GFCI breaker requires the branch-circuit neutral to terminate directly at the breaker to ensure proper ground-fault sensing.

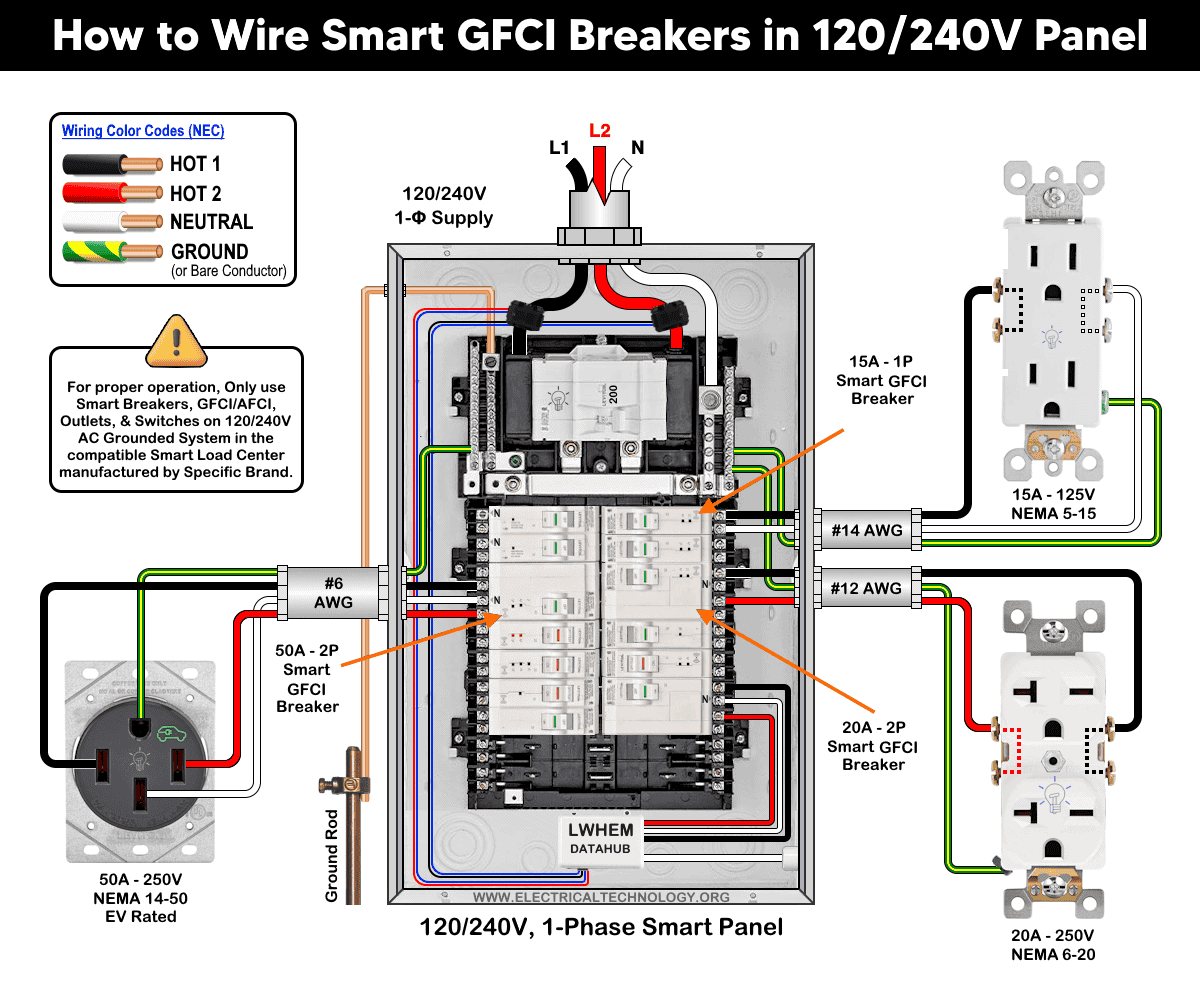

The following wiring diagram illustrates 1P and 2P smart GFCI breakers for NEMA 15A – 120V, 20A – 250V and 50A – 120/240V outlets and receptacles.

Click image or open in a new tab to enlarge

Warning: The load neutral of 1-Pole 2-wire and 2-pole 3-wire branch circuit must be connected to the load neutral terminal of breaker (Marked with “N”), not to the neutral busbar in the main panel.

Finally, use the My Leviton App and the Getting Started Guide to add and enable the GFCI breaker’s smart functions.

Wiring a Smart GFCI Breakers in a Conventional Panel

In the absence of a smart panel, a smart GFCI breaker can still be installed in a conventional load center. For example, Eaton offers a plug-on Wi-Fi breaker with integrated GFCI protection (SBR260WGF – AbleEdge BR smart breaker). This breaker allows smart functionality without requiring a panel upgrade.

The wiring diagram shows a 2-pole smart breaker with GFCI protection installed to protect a 60A, 125/250V receptacle (NEMA 14-60) in a standard 120/240V load center.

Click image or open in a new tab to enlarge

Wiring Method

The wiring method is similar to that of wiring a standard 2-pole GFCI breaker:

Mount the breaker onto the panel’s main busbars.
Connect the breaker’s built-in white pigtail to the neutral busbar in the main panel.
Connect the load conductors from the breaker to the receptacle using #6 AWG or #4 AWG conductors (as required by ampacity and code compliance), as follows:

Hot 1 – Black
Hot 2 – Red
Neutral – White
Equipment Ground – Bare copper or Green

This configuration ensures proper GFCI operation while enabling smart monitoring and control features through the breaker’s integrated Wi-Fi capability.

Termination Values:

The wire gauge sizes, insulation strip lengths, and terminal torque specifications listed below apply to common Leviton devices installed in the main electrical panel.

Troubleshooting via LED Status Indictor

The following table shows the troubleshooting and diagnostic of smart GFCI breakers by Leviton using the built-in LED status indicator on it.

Smart GFCI Breaker LED Status Indicator
Breaker Handel	GF LED	ON/OFF LED	Device Status
Green	OFF	OFF	ON
Green	OFF	ON – Solid	Remote OFF
Red	OFF	OFF	Short-circuit / Overload Trip
Red	ON – Solid	OFF	Ground Fault Trip
Red	ON – Blinking	OFF	0.1 Sec Delay – Replace Breaker
Red	ON – Blinking	OFF	3 sec Delay – Neutral Miswired
White	OFF	OFF	Manual OFF

Precaution:

Always disconnect the power supply by switching OFF the main breaker before performing any electrical work.
Never install AFCI, GFCI, AFCI/GFCI or GFPE breakers on circuits with shared neutrals, false or unwanted trips will occur.
Do not use AFCI/GFCI branch circuit breakers for life-support equipment in hospitals and health services units because the nuisance tripping of the device will cut power to the equipment.
GFCI and AFCI must be installed using copper / copper-clade conductors only.
If you are unsure about any step, consult a licensed electrician to ensure the installation complies with applicable local electrical codes and regulations.
Exercise extreme caution when working with electricity. Improper handling can result in serious injury, property damage, or death.
If you are unsure about any step, consult a licensed electrician to ensure the installation complies with applicable local electrical codes and regulations.
The author assumes no liability for any loss, injury, or damage resulting from the use or misinterpretation of this information, or from improper installation of any circuit.
